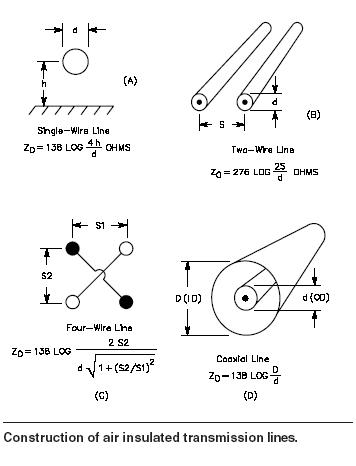

Construction of air insulated transmission lines.





  Single wire line   Two-wire line

  h   S
  d   d
  Zo   Zo

  Four-wire line   Coaxial line
  S1
  S2   D(ID)
  d   d(OD)
  Zo   Zo
